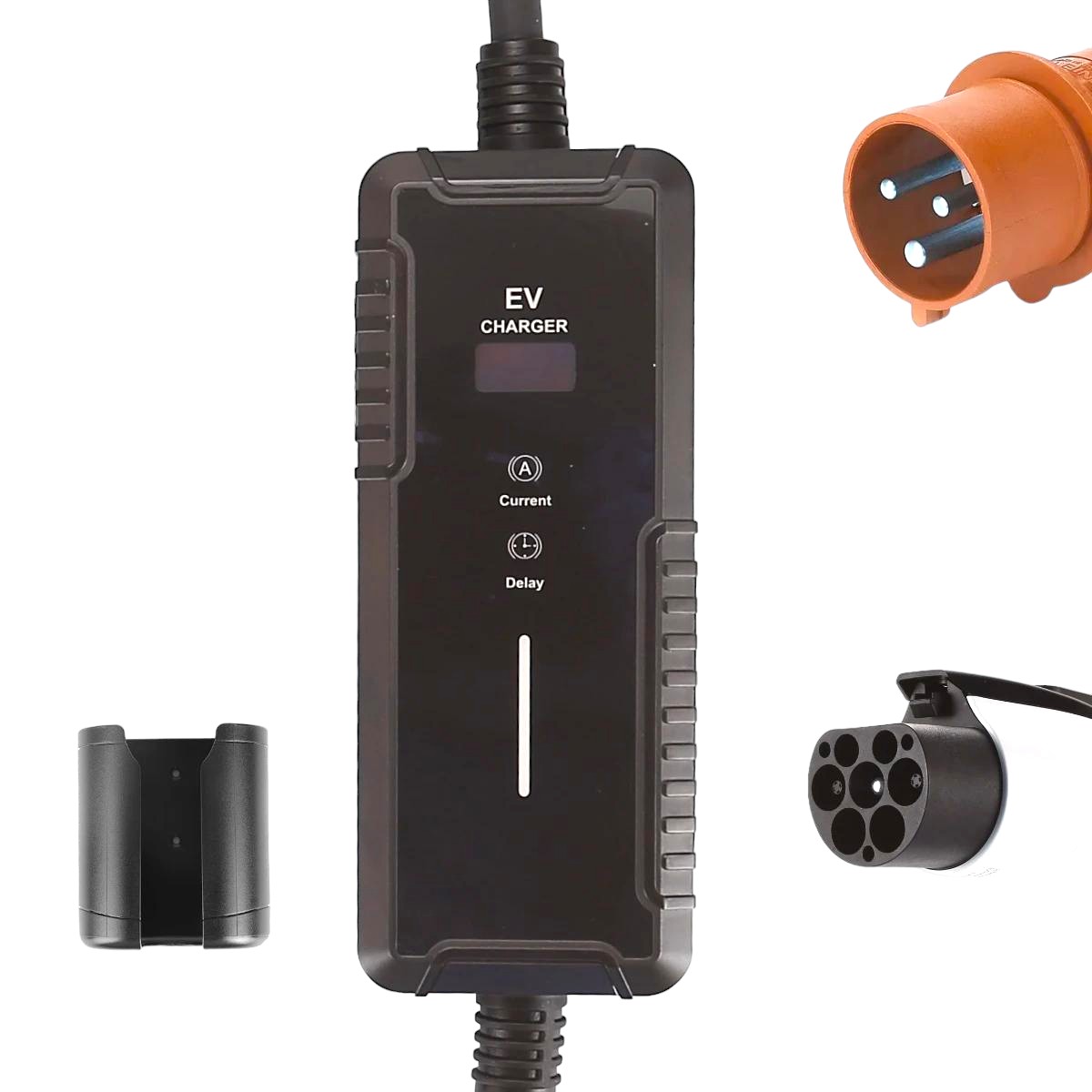

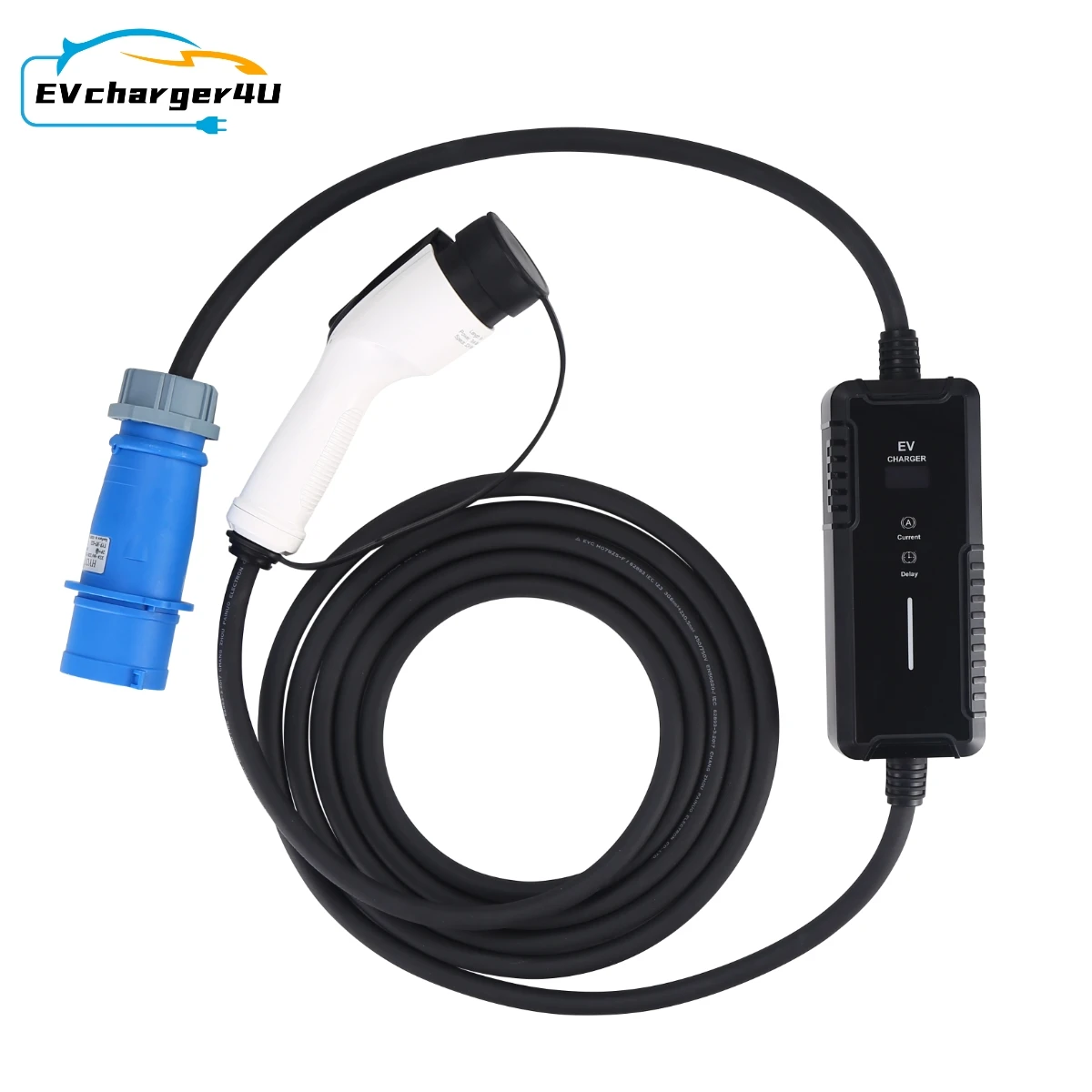

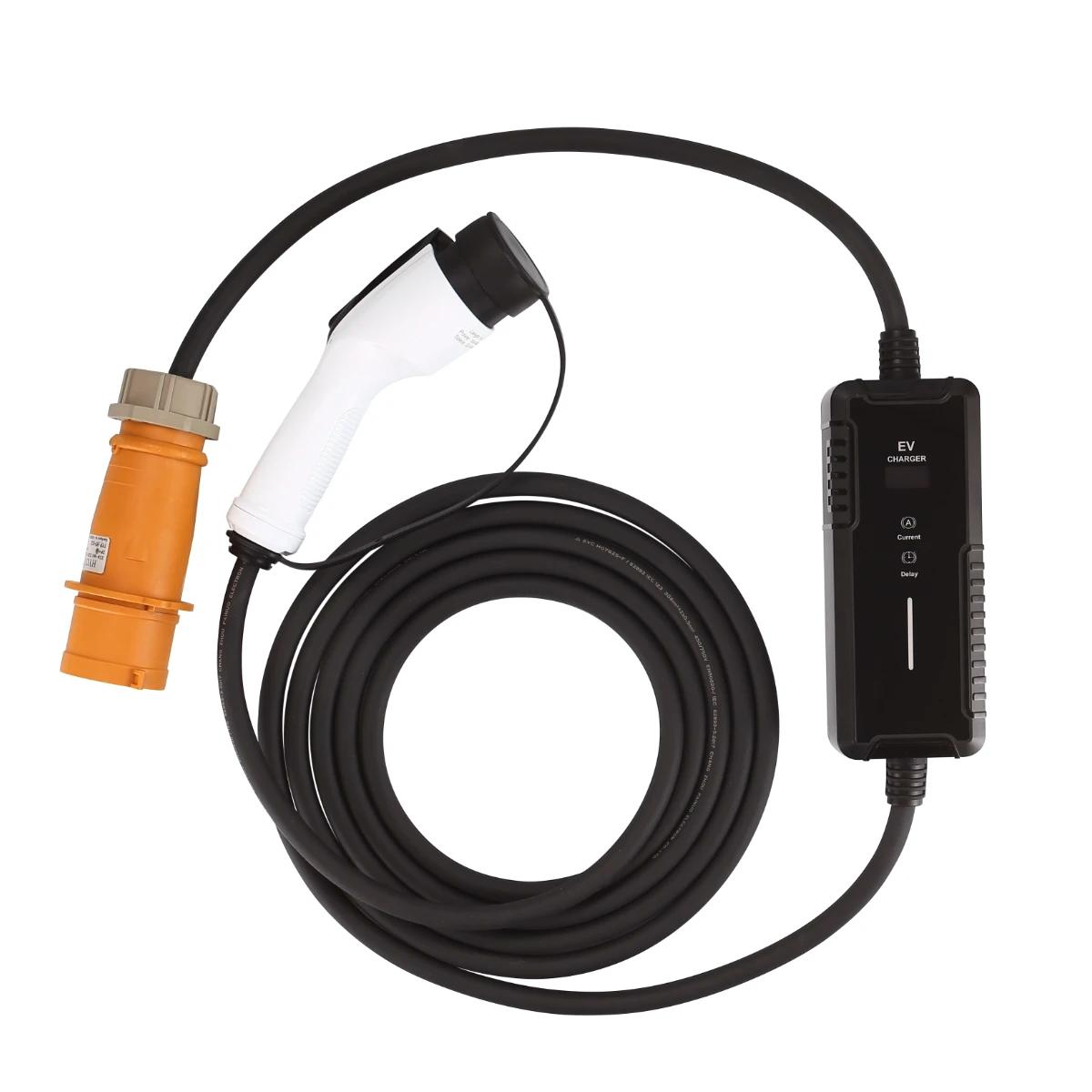

GBT Portable EV Charger CEE 32A IEC62196 For Chinese Electric Vehicles GB/T Charging Station

Description

EVcharger4U GBT Portable EV Charger CEE 32A IEC62196 For Chinese Made Electric Vehicles GB/T Charging Station

Specs:

Phases: single phase

Output Power: 7kW

Power pins: 3 pcs(L1, N, PE)

Input Voltage: 250V ¡À20AC

ChargingCurrent: 6A/8A/10A/13A/16A/20A/24A/32A adjustable

Signal pins: 2 pcs (CP, PD)

Signal current: 2A Signal voltage: 30V AC

IP Rating: IP55

Operating tempeature: -25¡æ to +60¡æ

Length: 5 meters

Mechanical life: plug in/out > 10000 times

Impact of external force: can afford 2m drop and 2t vehicle run over pressure

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise: < 50K

Housing Fire Rating£ºUL94V-0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 6A/8A/10A/13A/16A/20A/24A/32A

LED Display

1. Charging Temperature

2. Charging Status

3. Set Current

4. Charged time

5. Charging Current
