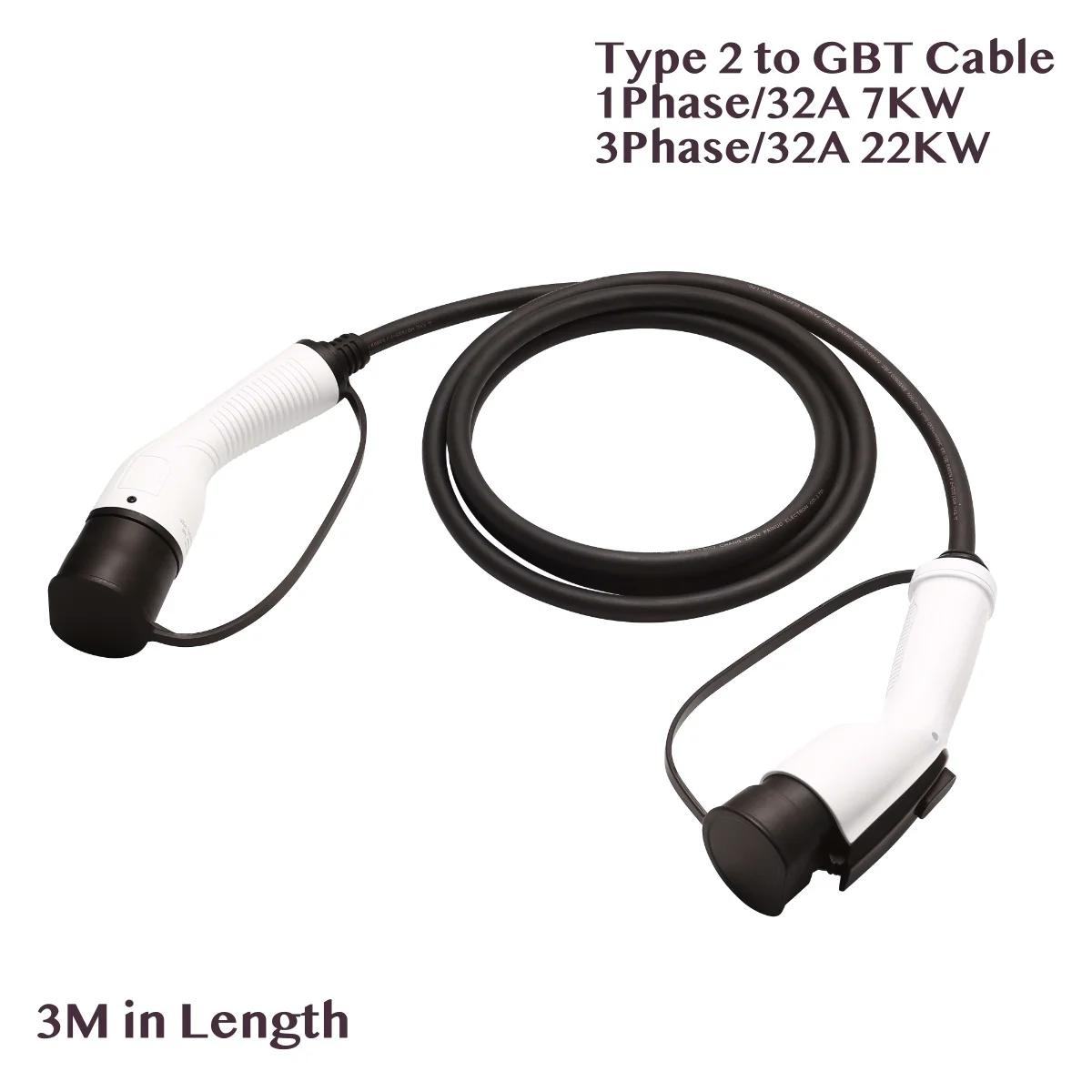

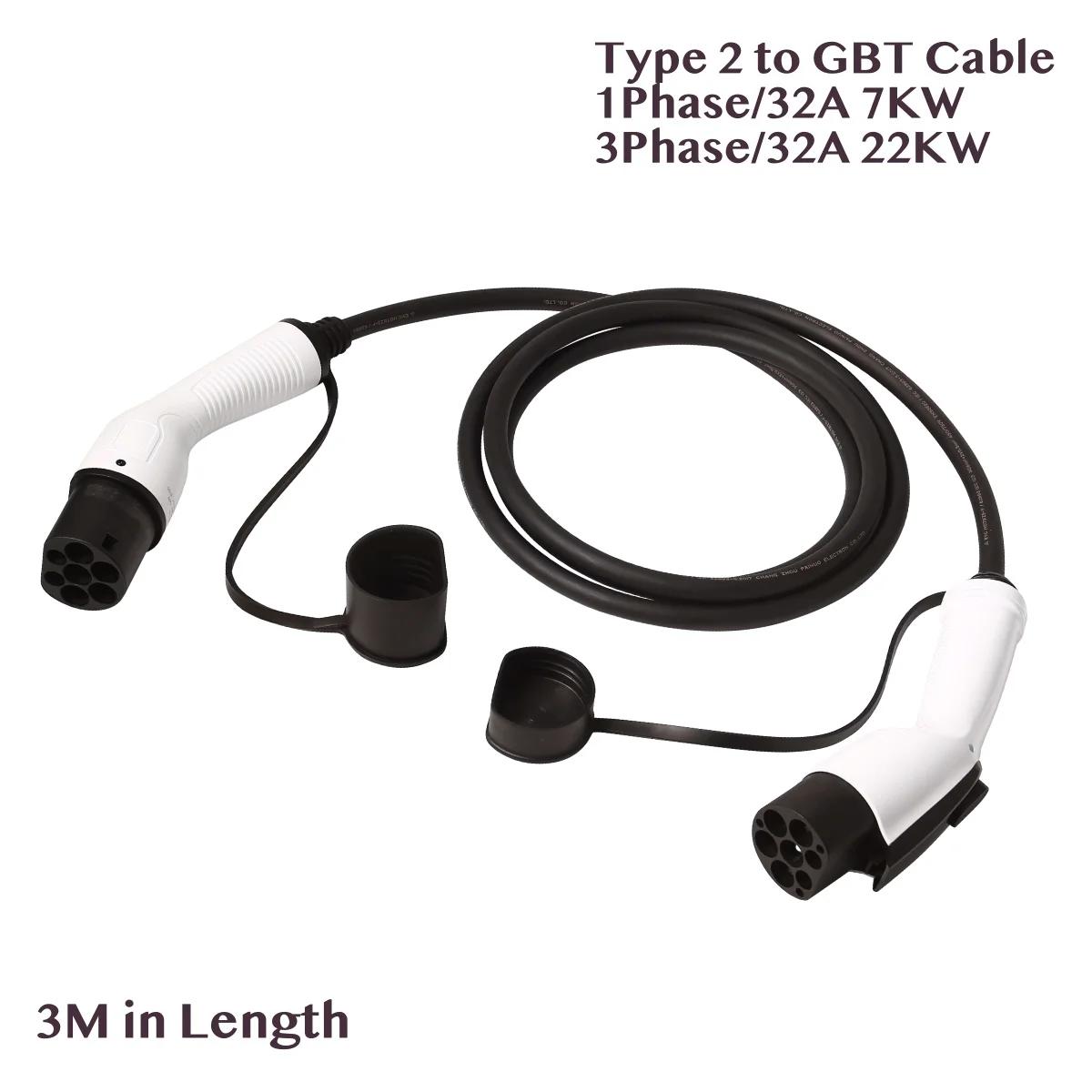

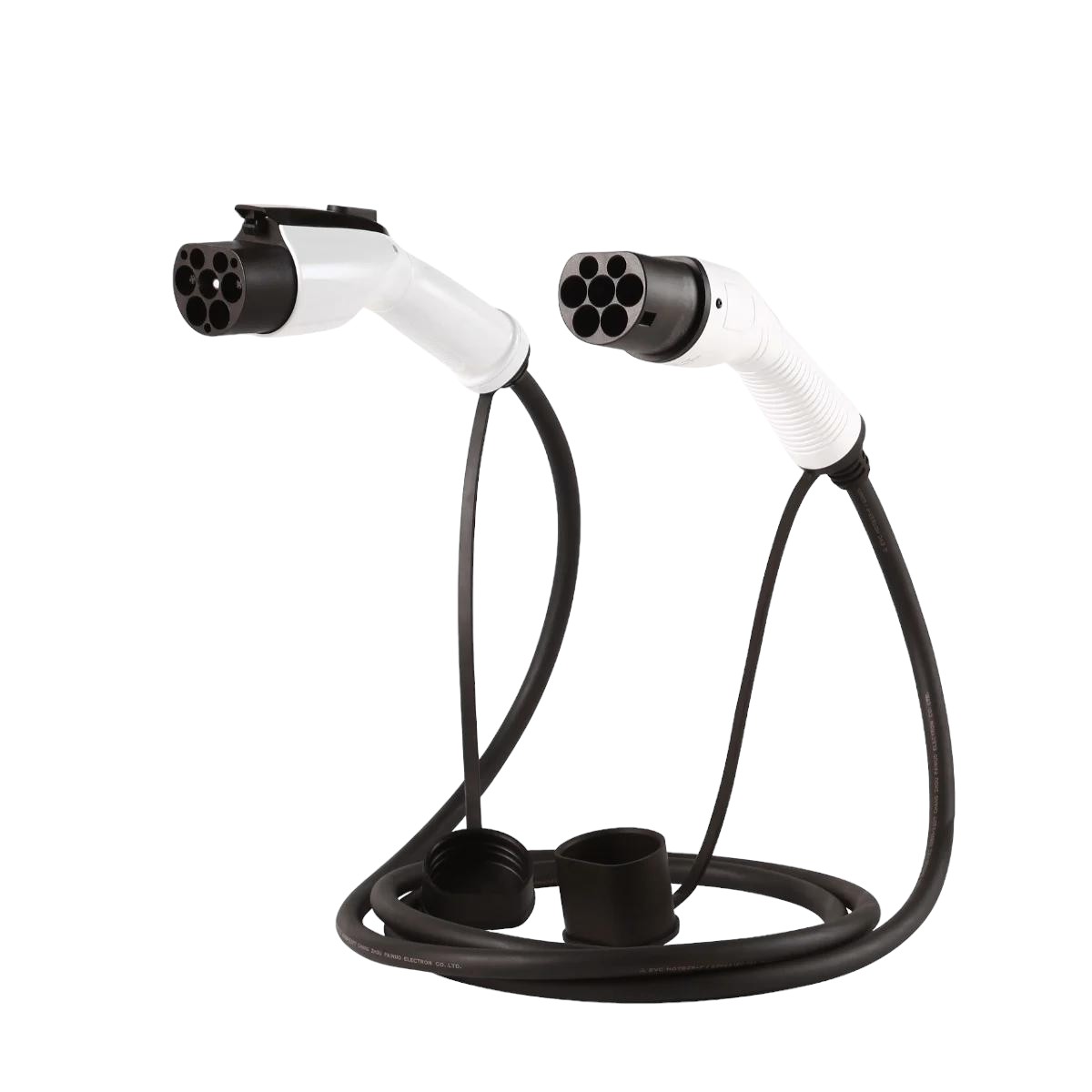

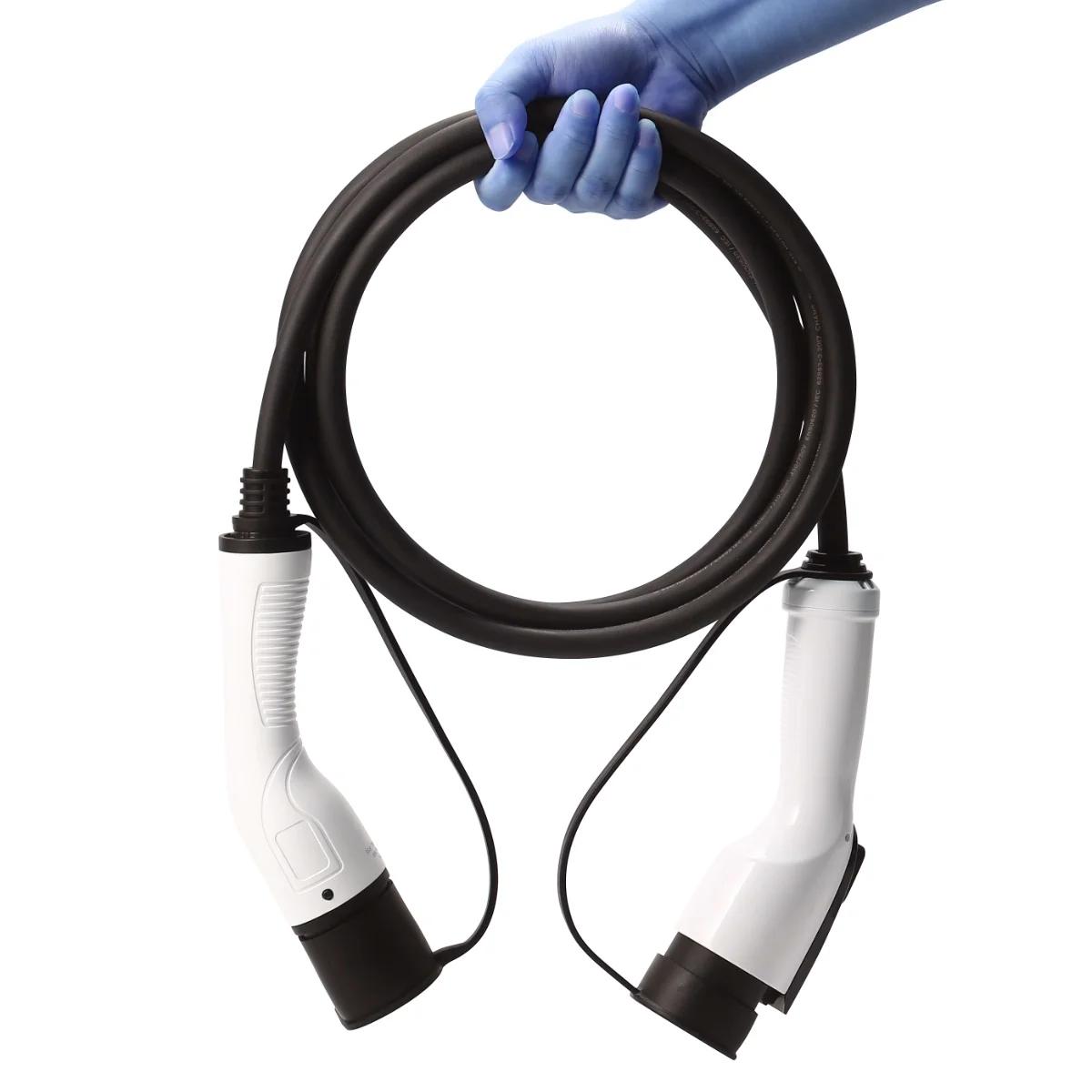

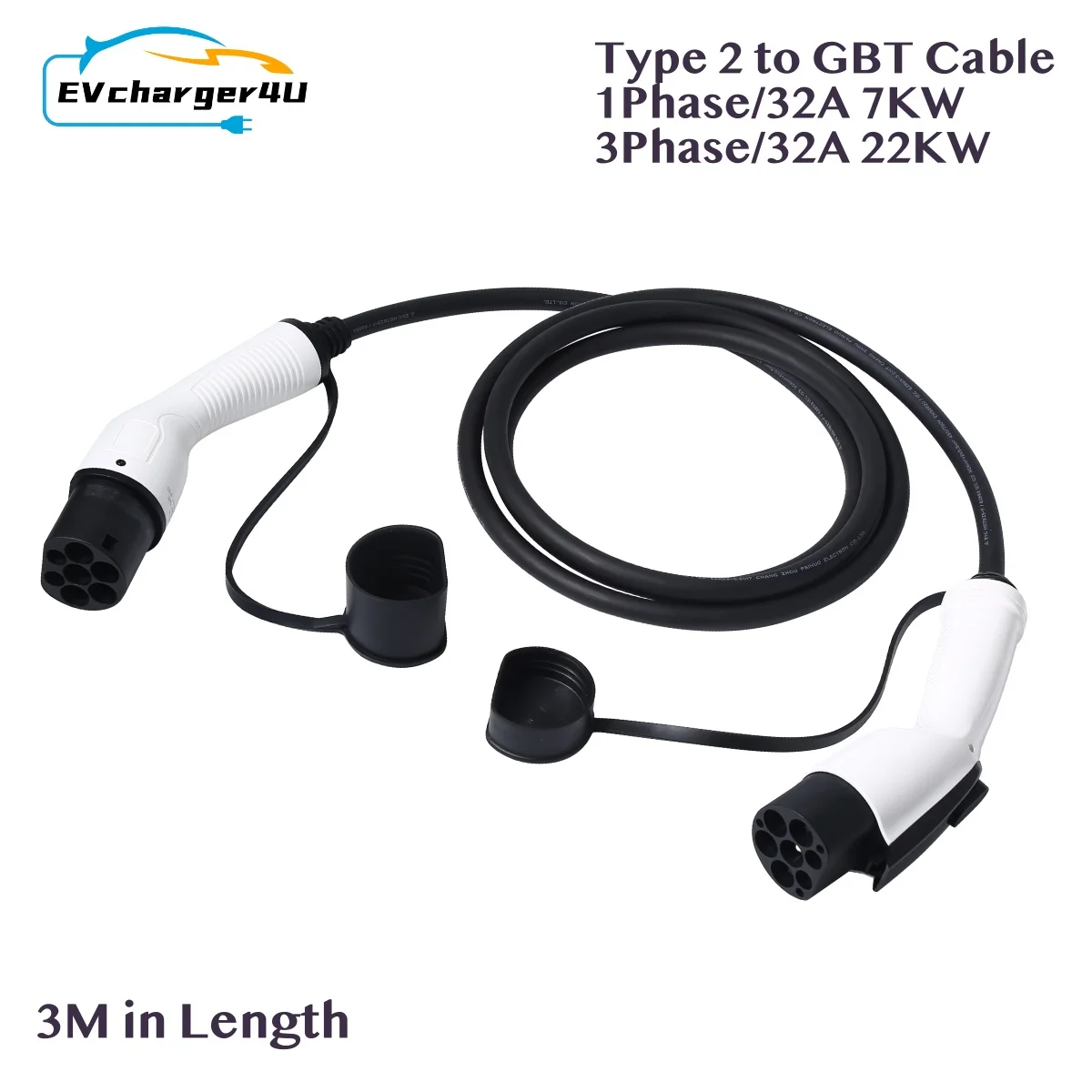

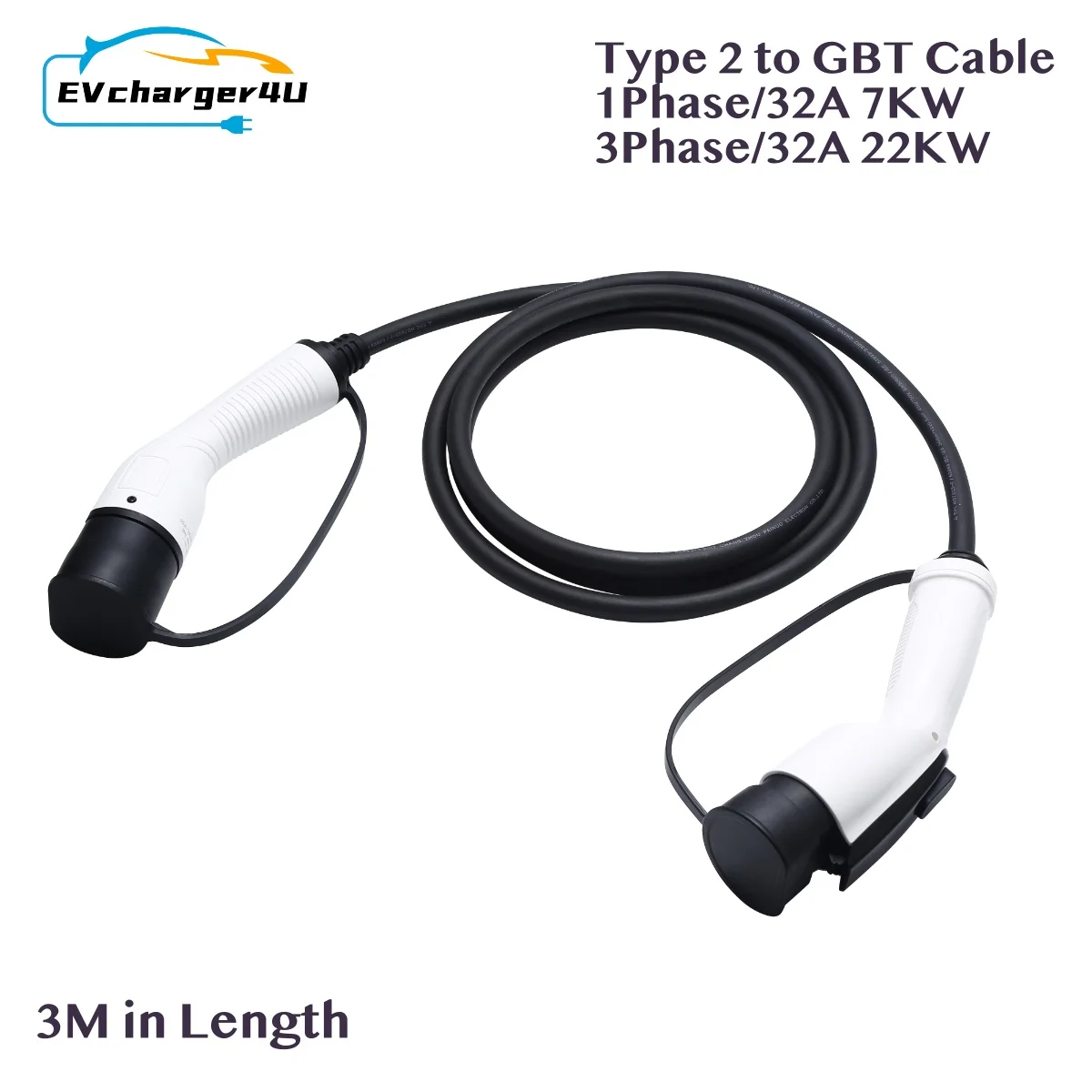

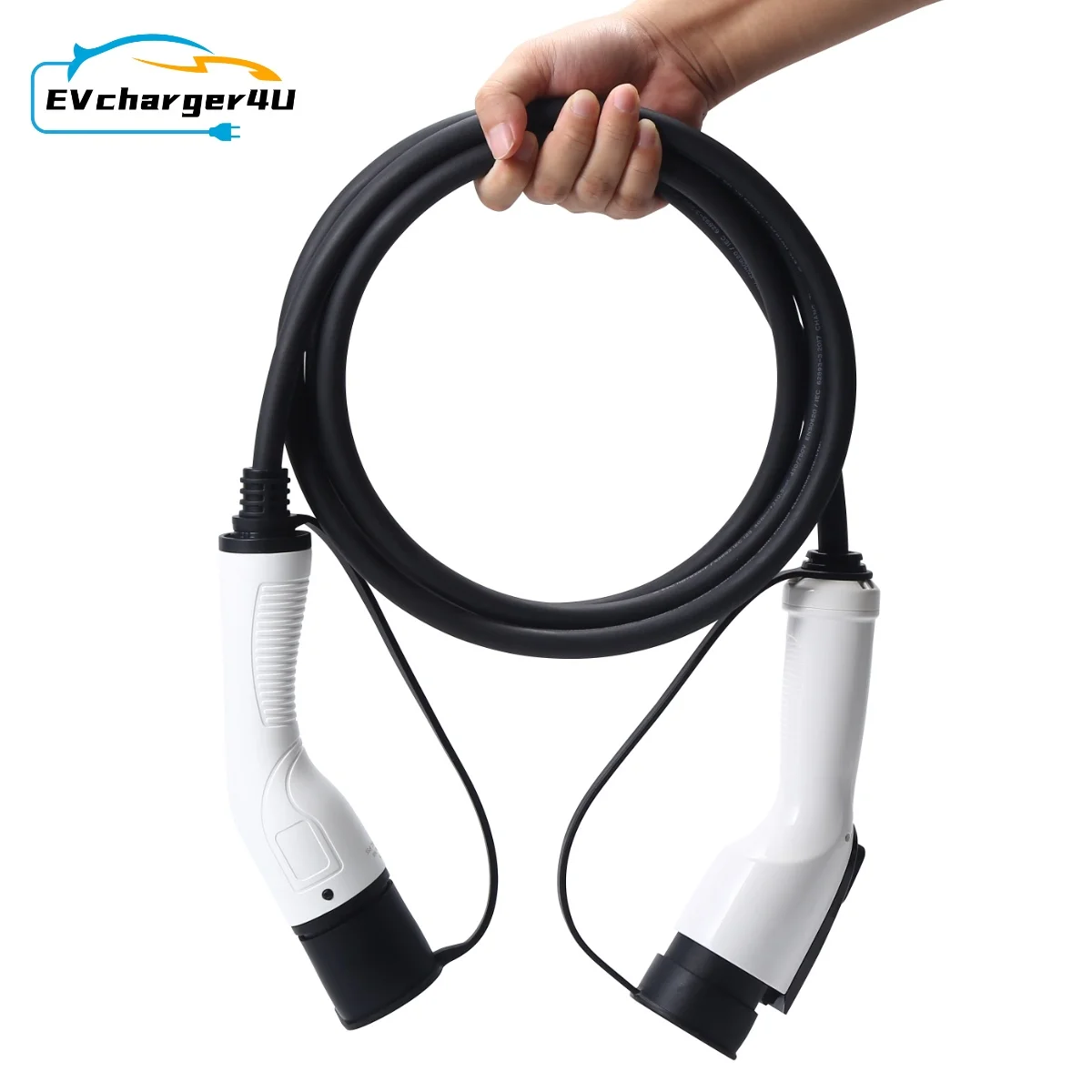

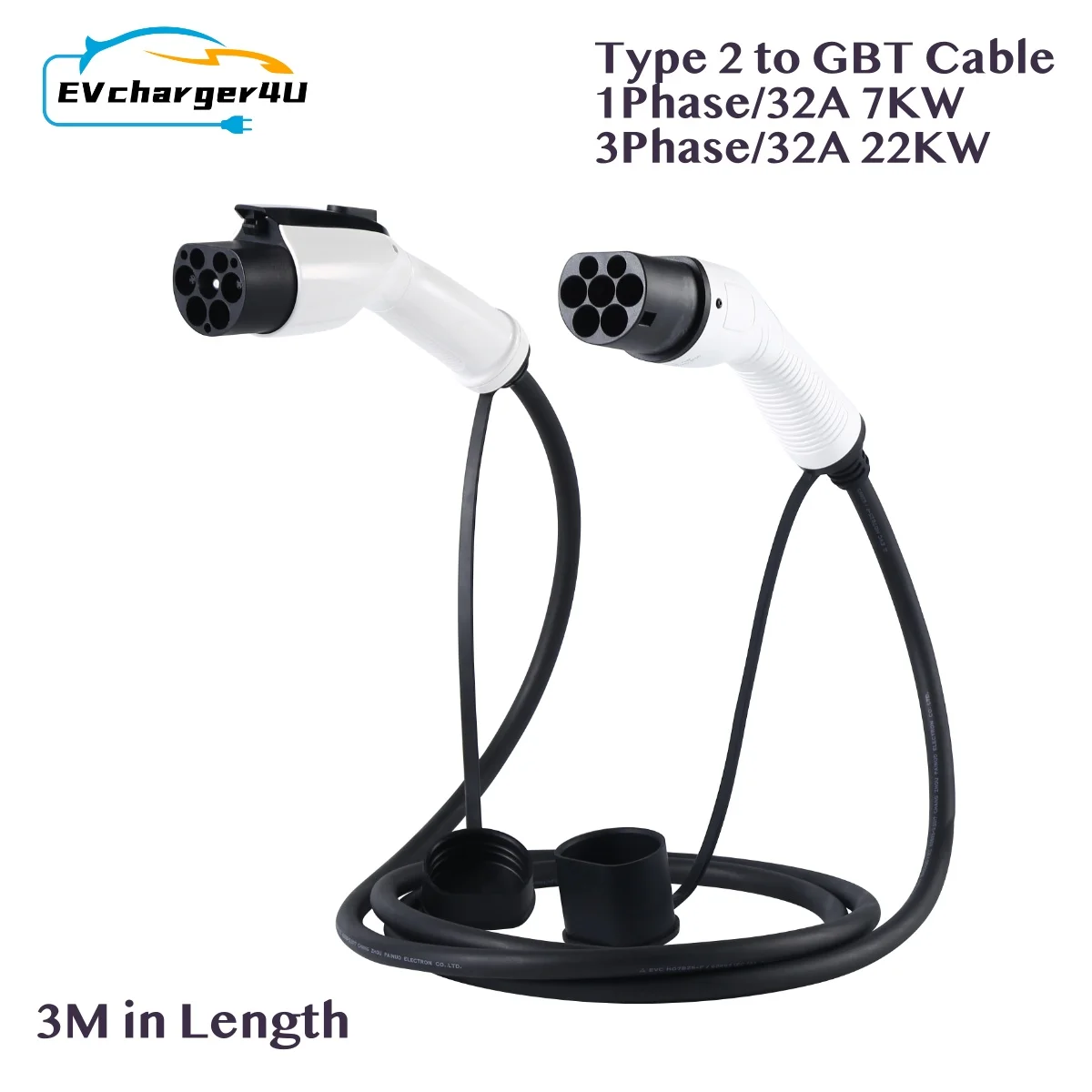

EV Charging Cable Type 2 To GB/T 1Phase 3Phase 32A 7KW 22KW Electric Vehicle Cord For Charger Station

$92.29$125.06

Description

Electric Performance£º

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C



Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over



Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable: black with TPU jacket. Other color optional by customizing



Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance




Additional information

Weight3 kg
Dimensions20 × 15 cm
SKU

771#3Phase 32A 22KW B, 193#1Phase 32A 7KW B, 173#1Phase 32A 7KW A, 1254#3Phase 32A 22KW A
