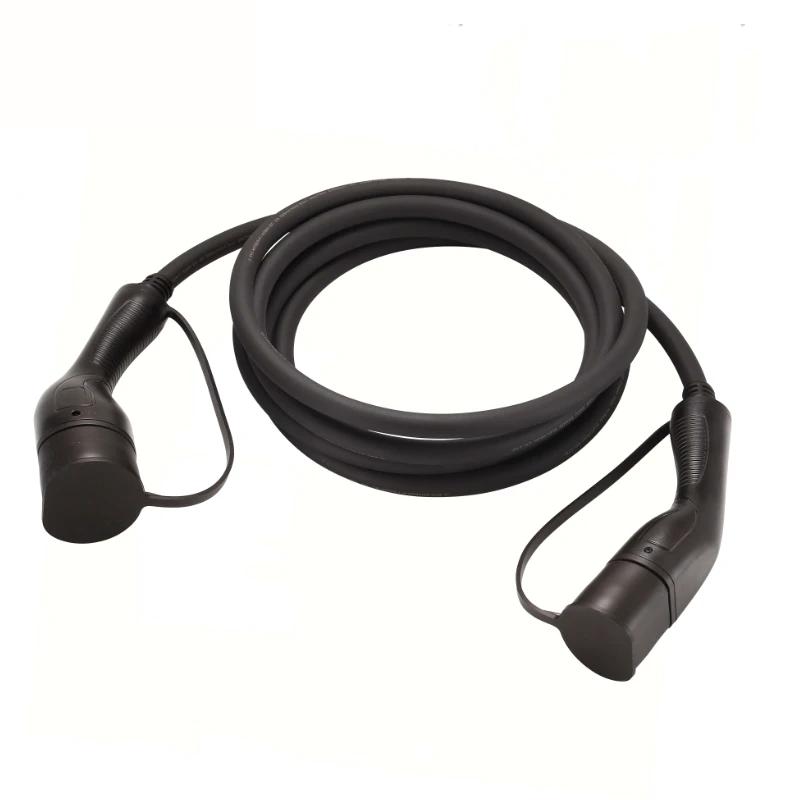

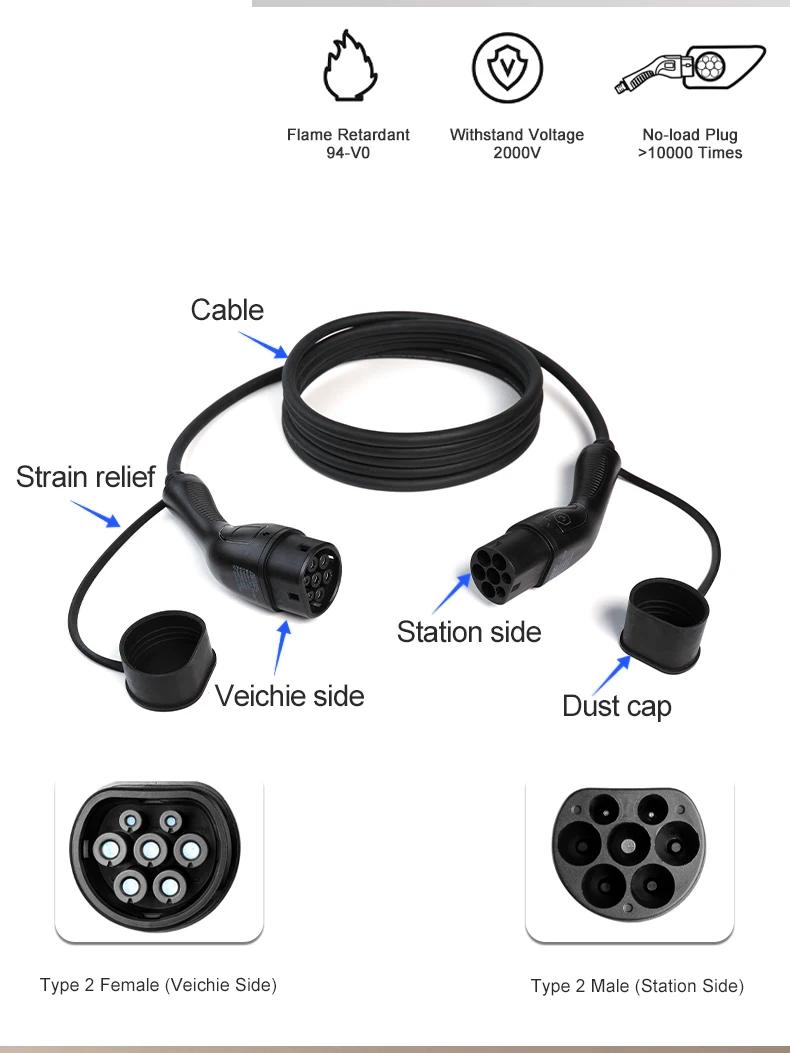

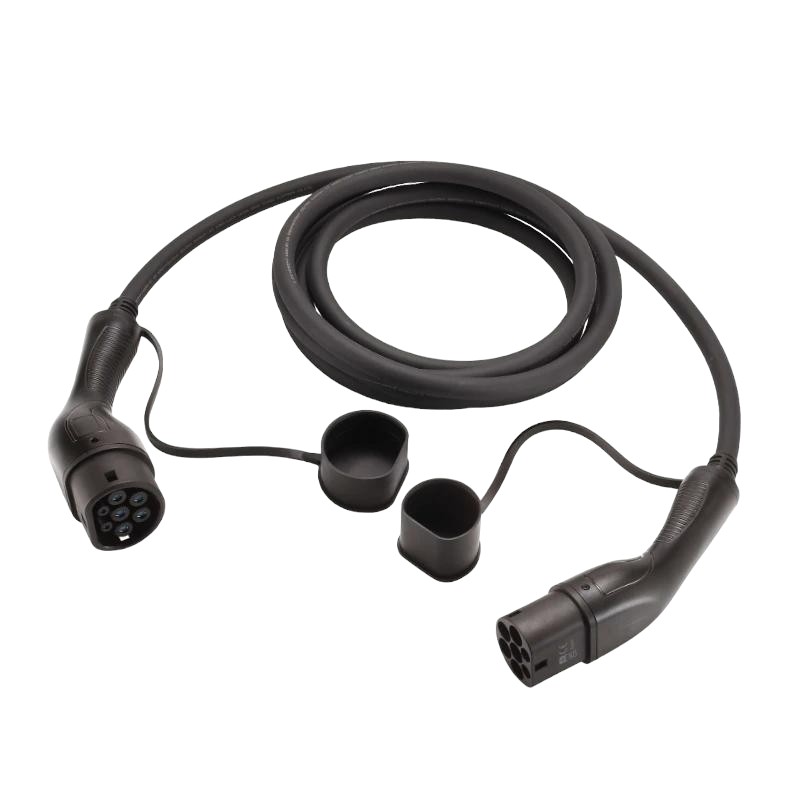

EV Charging Cable Type 2 To Type 2 380V-480V 3Phase 22KW 5M Extension For Electric Car Charger
$153.45
4 in stock
Description
Electric Performance£º
Protection rank: IP55
Fire retardant level: 94 V-0
Rated Current: 16A / 32A
Rated voltage: 250V / 480V
Insulation resistance: > 1000M ohm (DC 500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5m ohm Max
Coupled insertion force: >45N <80N
Operating temperature: -30C to 50C
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force: qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
Features
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
Additional information
Weight | 4 kg |
---|---|
Dimensions | 32 × 32 × 10 cm |
SKU | 771#3Phase 32A 22KW 5M |
