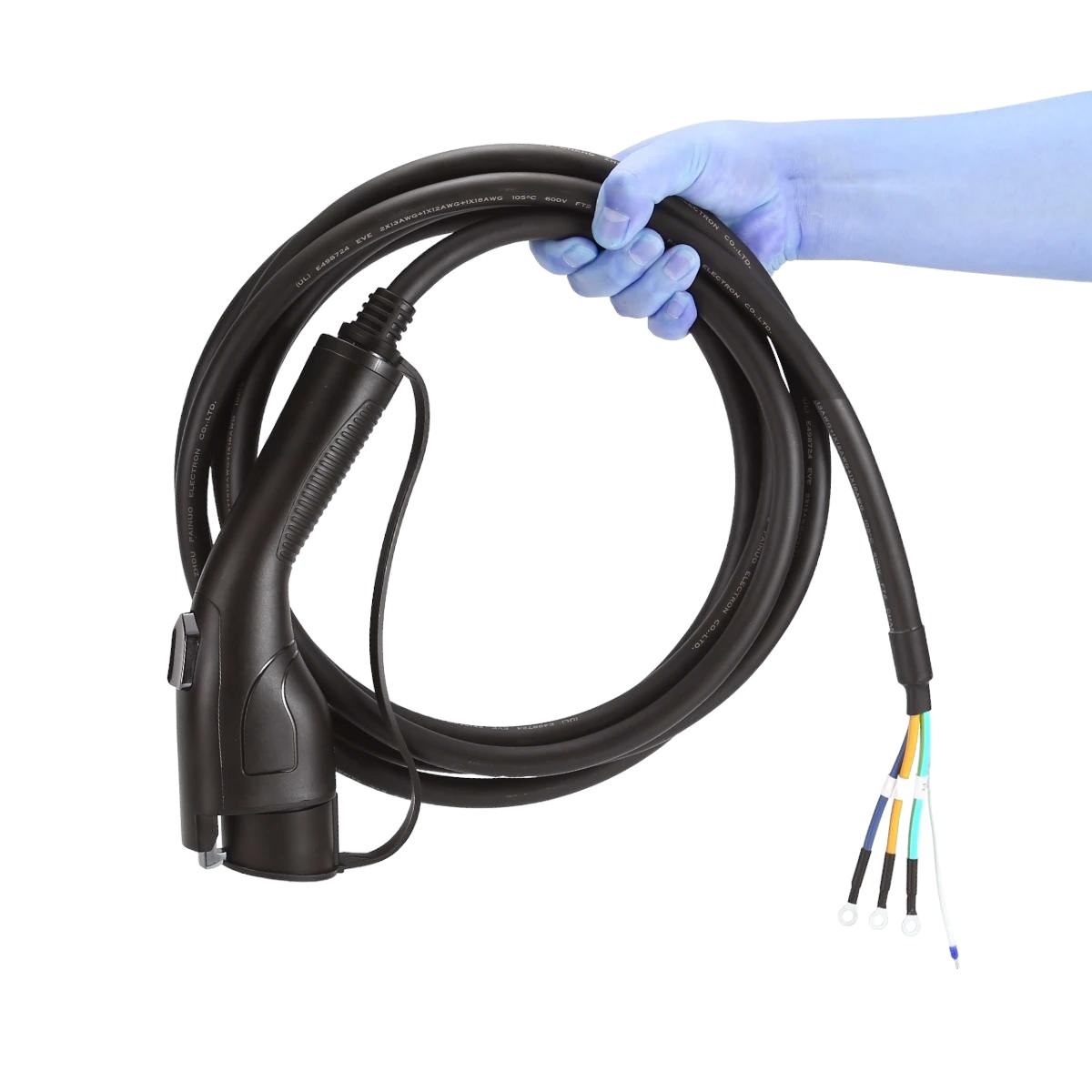

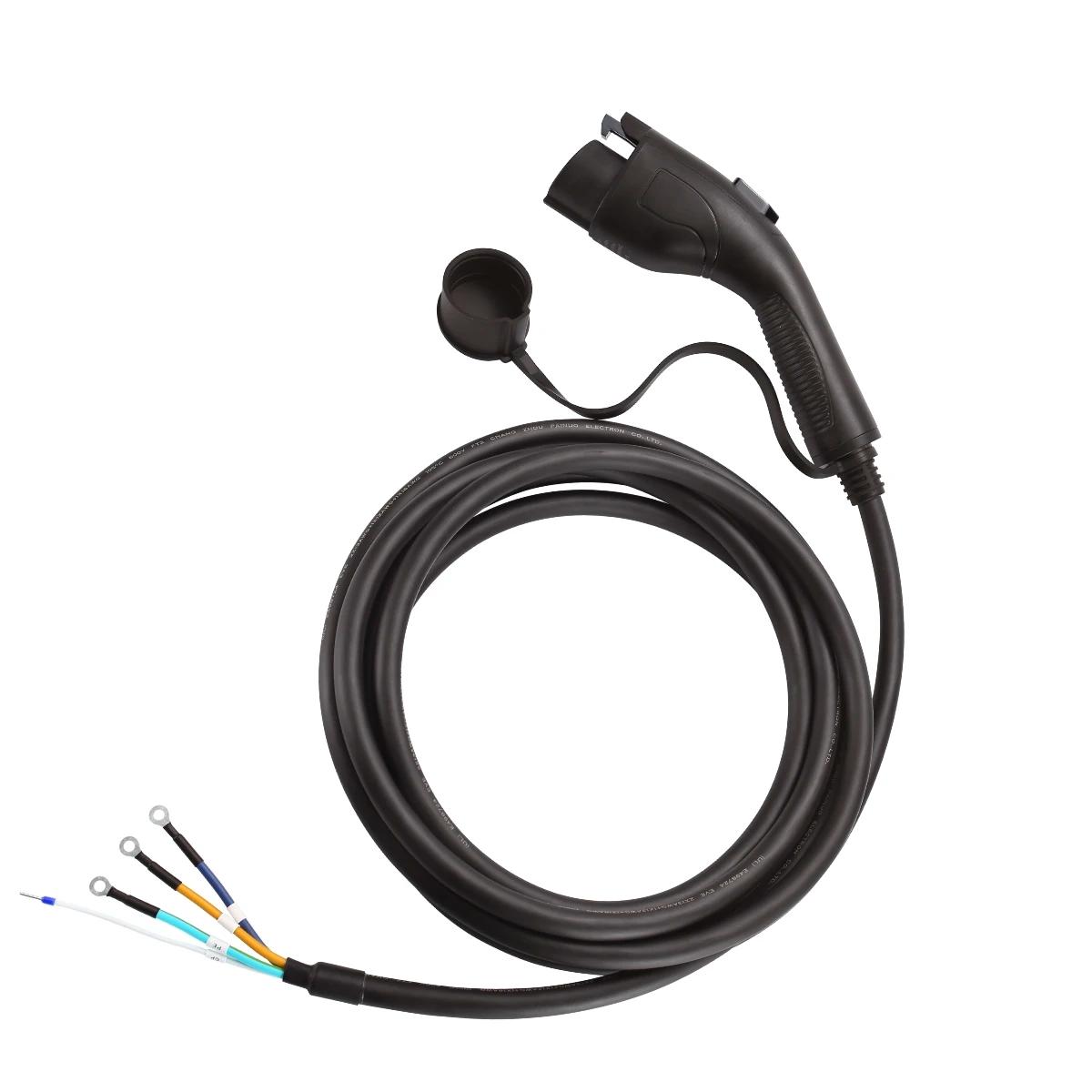

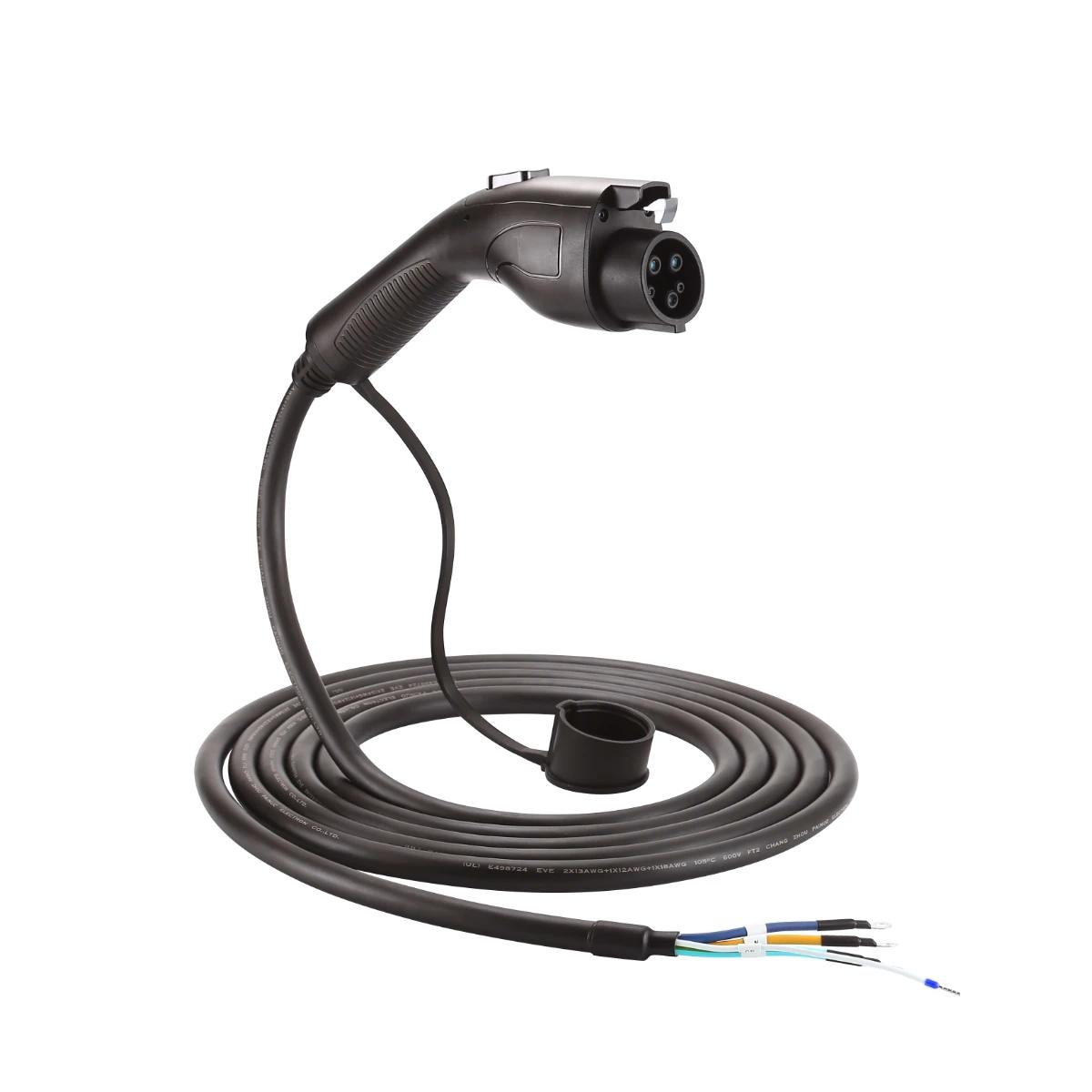

EV Charging Cable Type 1 SAE J1772 Female To Open Wire 1Phase 16A 32A 40A 48A For Electric Vehicle Charger Station

Description

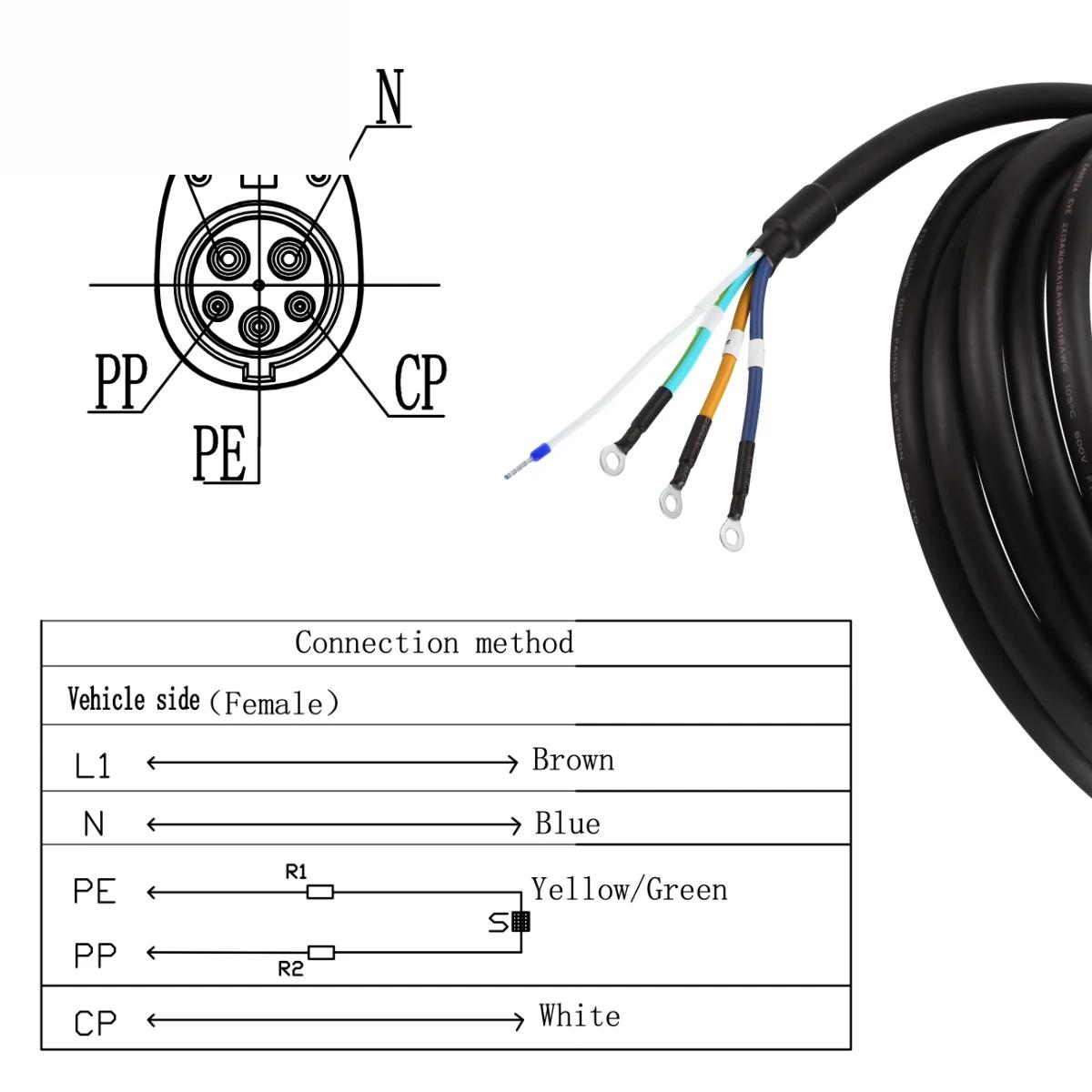

Model No. and Cable specification

U1-16: 16A, 110-240V, 3x14AWG+18AWG

U1-32: 32A, 110-240V, 3x10AWG+18AWG

U1-40: 40A, 110-240V, 3*9AWG+1*18AWG

U1-48: 48A, 110-240V, 2x8AWG+10AWG+18AWG

Electric Performance£º

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A/32A/40A/48A

Rated voltage: 240V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C

Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over

Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable: black with TPE jacket. Other color optional by customizing

Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
