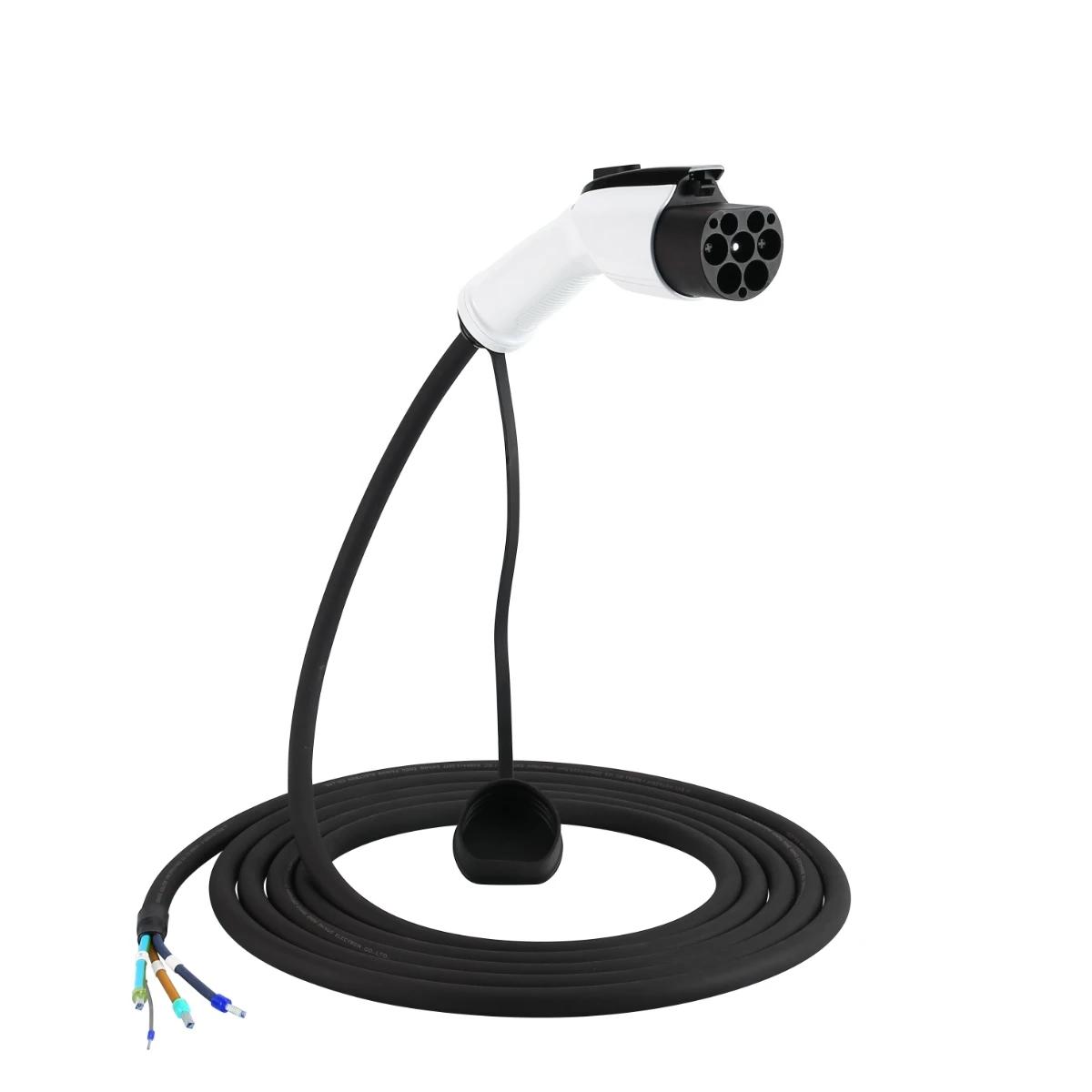

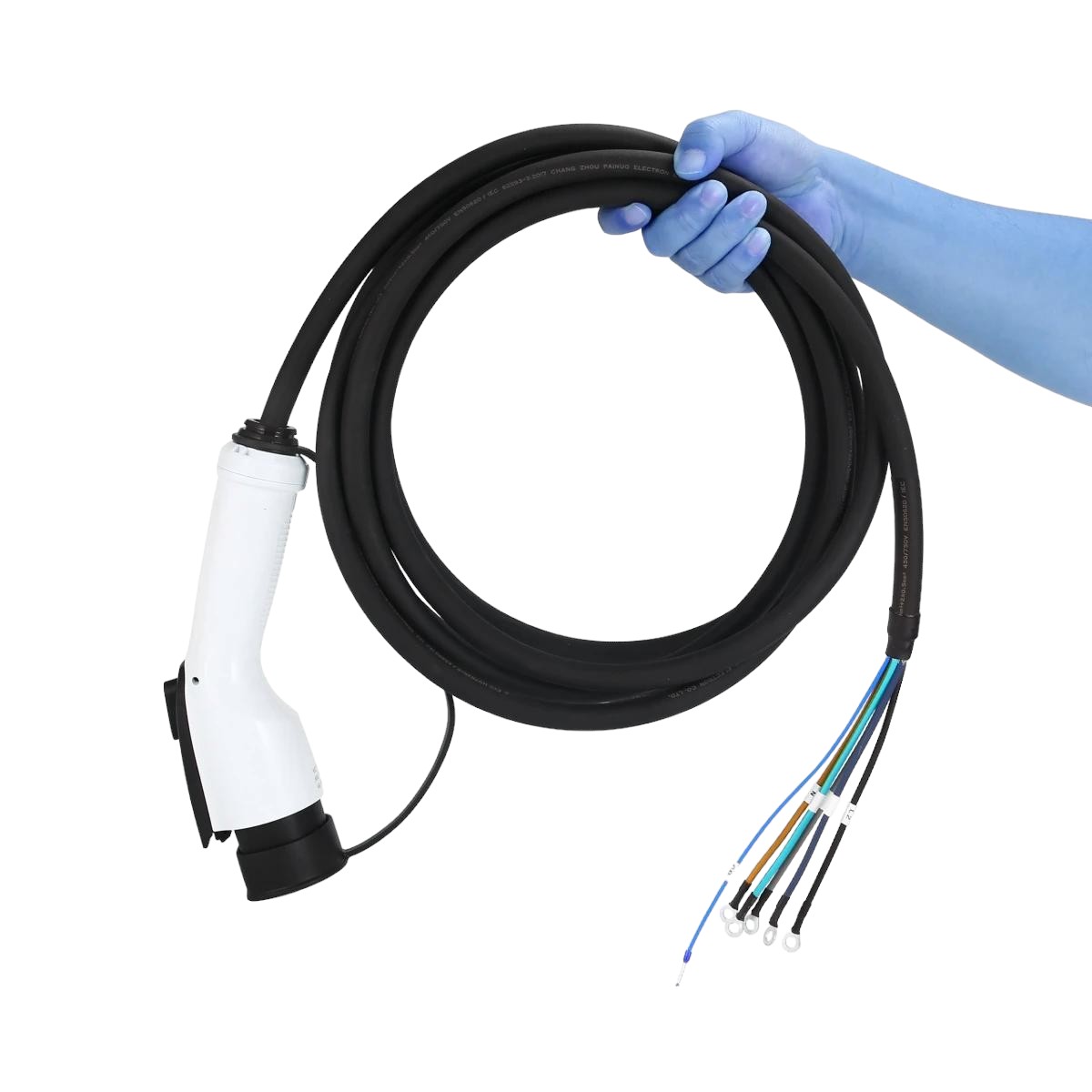

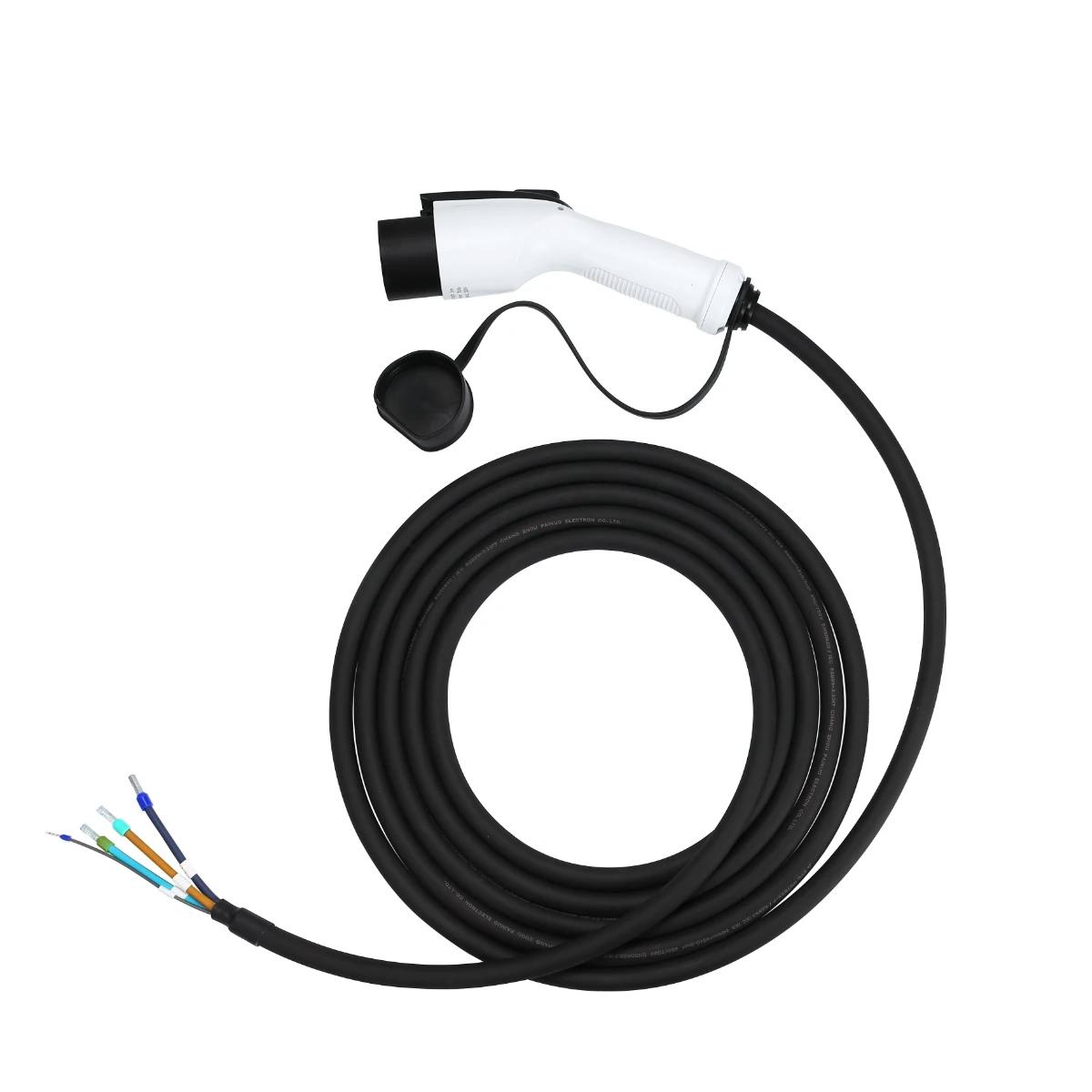

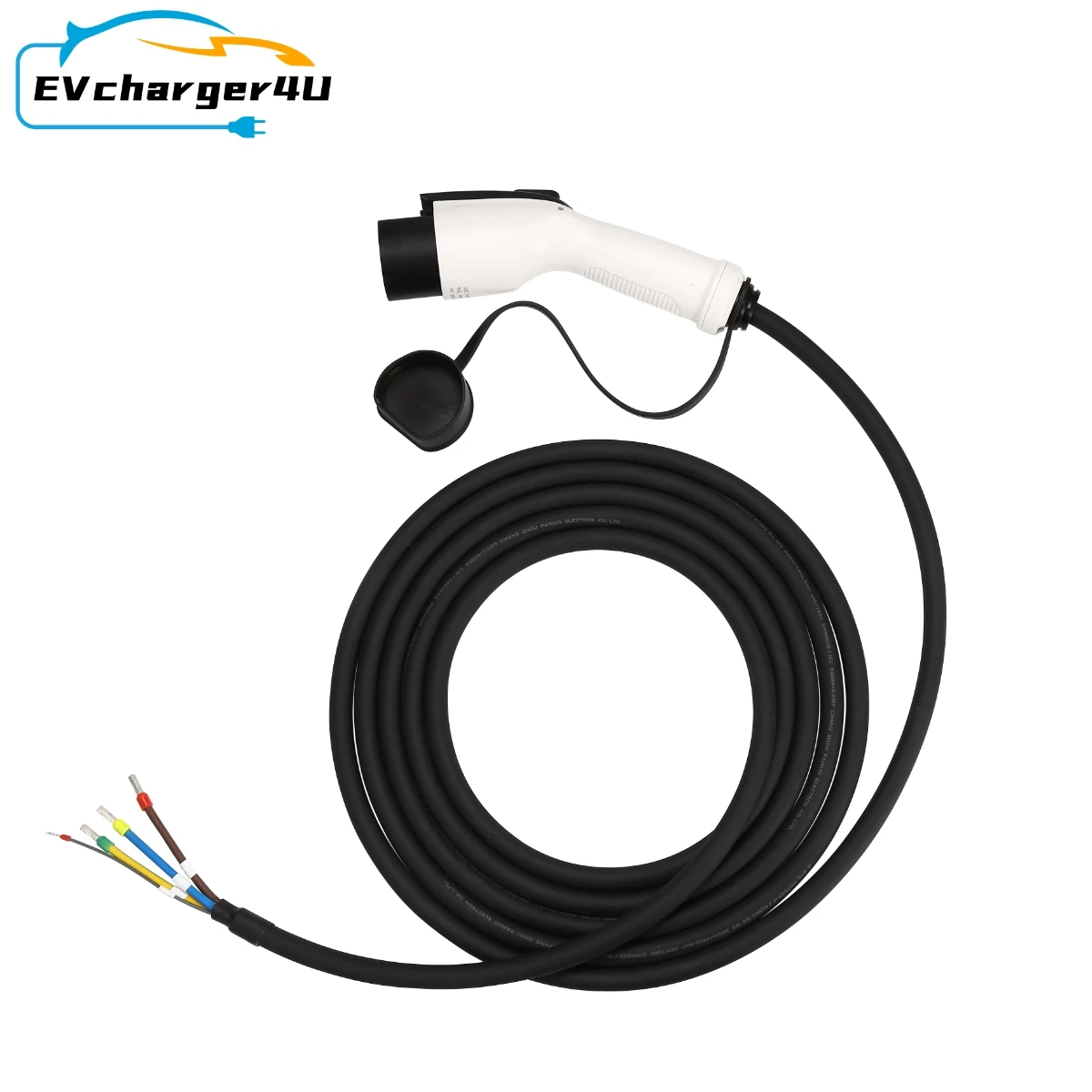

EV Charging Cable GBT 7KW 11KW 22KW Male GB/T To Open Wire For Electric Vehicle Charger Station

Description

Model No. and Cable specification

V1-16S-V: 3×2.5mm2+2×0.5mm2 (16A/1phase, 250V)

V1-32S-V: 3×6.0mm2+2×0.5mm2 (32A/1phase, 250V)

V1-16T-V: 5×2.5mm2+2×0.5mm2 (16A/3phase, 480V)

V1-32T-V: 5×6.0mm2+2×0.5mm2 (32A/3phase, 480V)

Electric Performance£º

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C

Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over

Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

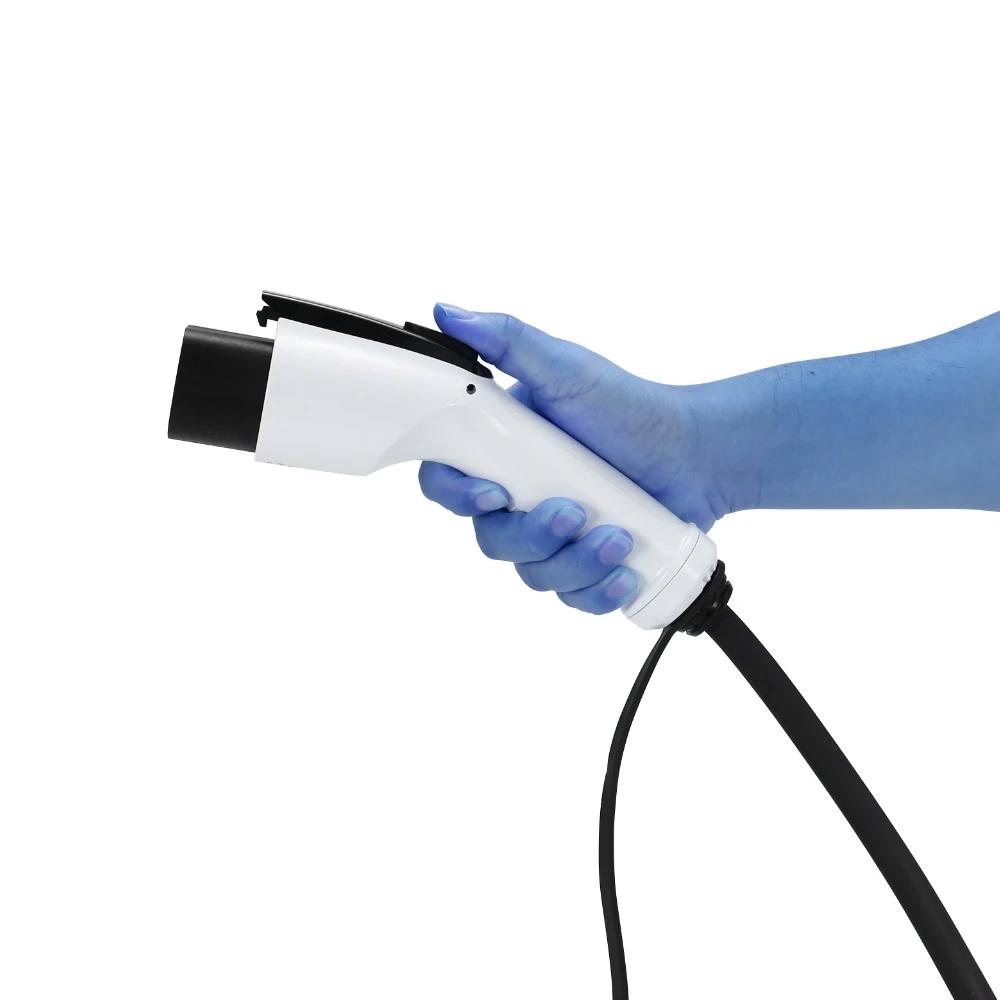

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

Cable: black with TPU jacket. Other color optional by customizing

Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
